Description

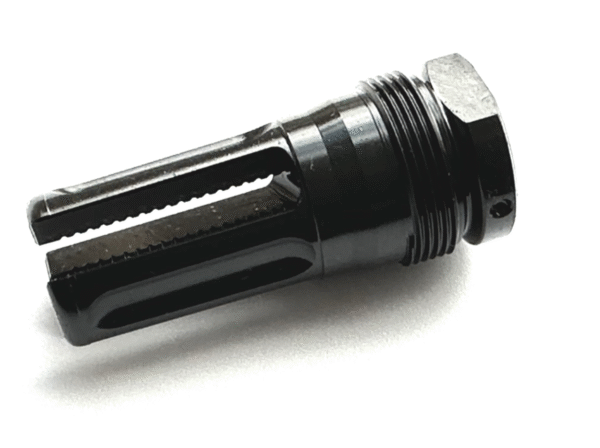

3P10 a 5/8 x 24, 30 cal Plan B compatible flash suppressor / sound suppressor mount, a collaboration is between Revival Defense and Forward Controls Design.
Unlike our tried and true 6315 design that provides both effective flash suppression and muzzle rise compensation, 3P15 (1/2 x 28) and 3P10 (5/8 x 24) are both pure flash suppressors that support Plan B and Atlas adapters.
3P10 is both a precision suppressor mount for Plan B and Atlas compatible sound suppressors and a superb flash suppressor. Our design philosophy regarding suppressor mounts is that in addition to their ability to mount the suppressors for which they’re designed, they should be good flash suppressors, compensators, brake, etc. in their own right 3P10 is shorter and smaller in diameter than many suppressor mounts/flash suppressors, these dimensions are defined by compatibility with Plan B and Atlas adapters. Given these constraints, 3P10’s flash suppression is very good, compared to A1, A2, and other similarly dimensioned open ended flash suppressors.

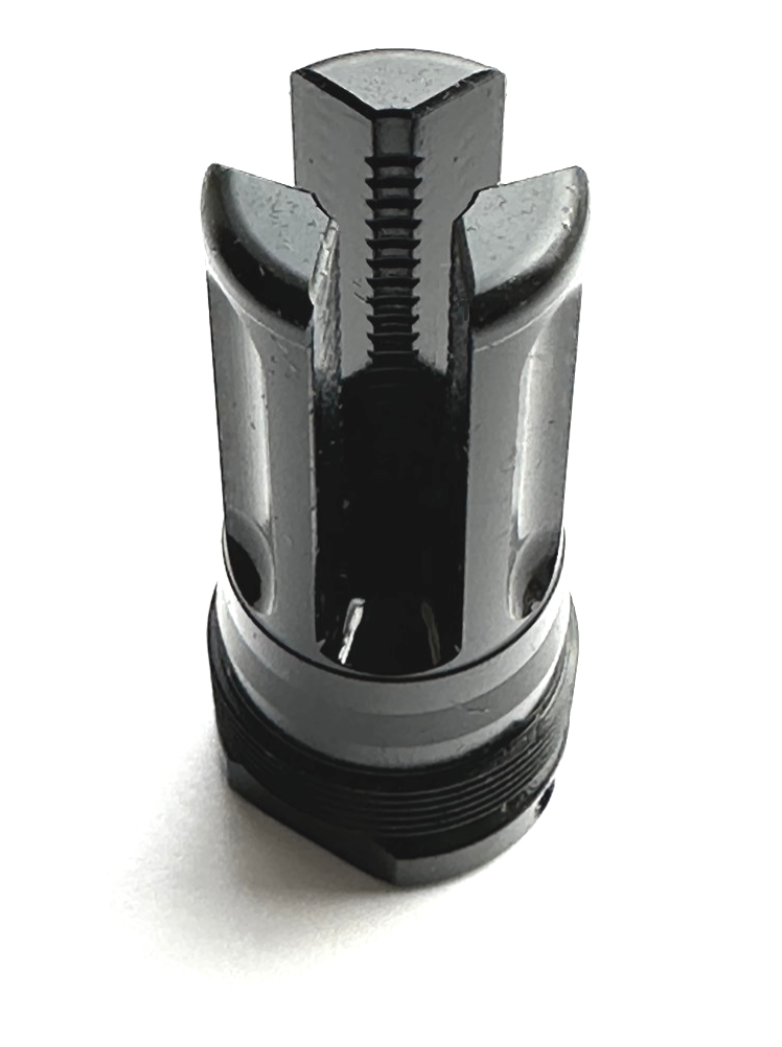

3P15 had 4 revisions, 3P10 had 5 before we were happy with their performance. They are Plan B / Atlas compatible flash suppressors / suppressor mounts. Here’s a pic that shows a bit of the 3P10 prong and the internal grooves. The width and depth of the flutes on the exterior of the prongs were designed to both reduce weight, and give each prong a different mass so they don’t conspire to work as a tuning fork.
The internal grooves serve to improve gas expansion and cooling, but by themselves, they’re not sufficient to make the device a better flash suppressor. Distance between each prong, the shape of the opening, the bore size and the length of the prongs are all factors.
Simplicity, beauty and functionally in a simple package.
3P10 has external 0.900 x 24 threads, compatible with sound suppressors with 0.900 x 24 threads (such as CGS and Plan B) and adapters such as Rearden’s Atlas adapter.
Length: 2.15″
Weight: 1.98oz
Internal threads: 5/8 x 24
External threads: 0.900 x 24
Wrench flats: 3/4″
Protrusion from the shoulder of a Plan B adapter to the tip of the 3P15 is about 1.47″.
3P10 has .900 x 24 External threads & a taper that are compatible with Plan B Type Mounts such as REARDEN Mounts and Various Suppressors. We worked with various Suppressor companies such as CGS in order to ensure compatibility with their devices when using a Rearden ATLAS.
Note: * Use on some manufacturers Silencers Can Void your warranty
Proudly designed and made in USA.
