YHM The Resonator R2

Description

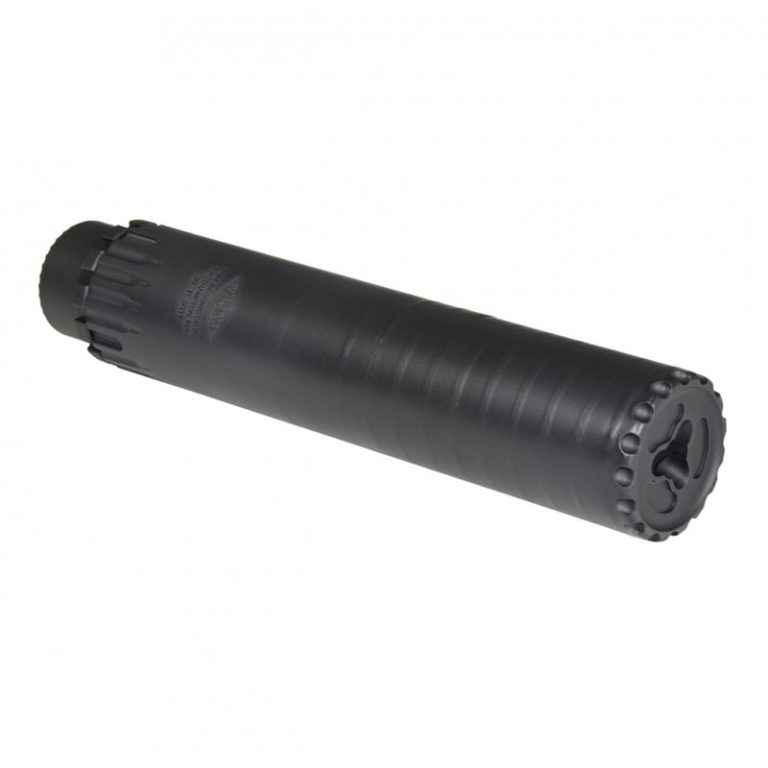

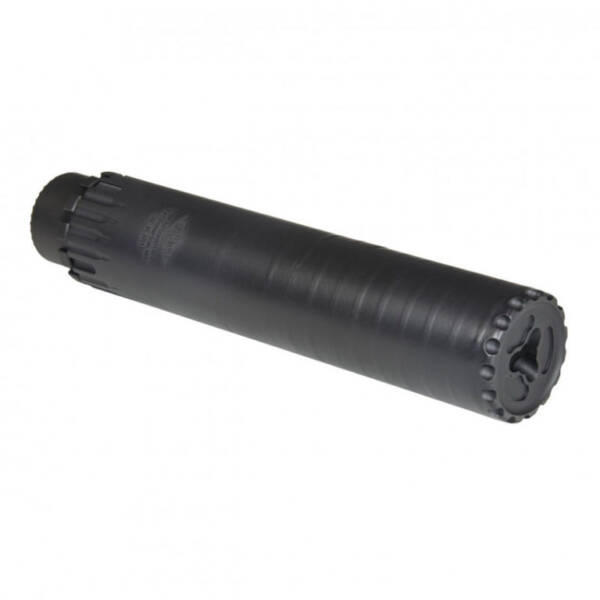

YHM’s .30 caliber sound suppressor, the Resonator R2, was created to provide the shooting enthusiast a quiet, lightweight and cost effective suppressor. The notched rim and tri-port muzzle on the end cap make it stand out among the crowd. Capable of being used on multiple calibers and host weapons, the Resonator R2 can be used on rifle calibers ranging from .17 HMR through 300 RUM making it a great choice for all shooters. Like the Turbo T2, the Resonator R2 uses a tubeless design which consists of heat treated 17-4 stainless steel and a heat treated 718 Inconel blast baffle which allows the suppressor to be full auto rated and designed for rigorous use. Includes YHM-4302 Q.D.

Sound Pressure levels are as follows:

• 20″ Remington 700 shooting .308 Winchester 147 grain measured 135Db
• 16″ 6.8mm AR-15 shooting 110 grain measured 132.5Db
• 14.5″ 5.56mm AR-15 shooting 55 grain measured 132Db

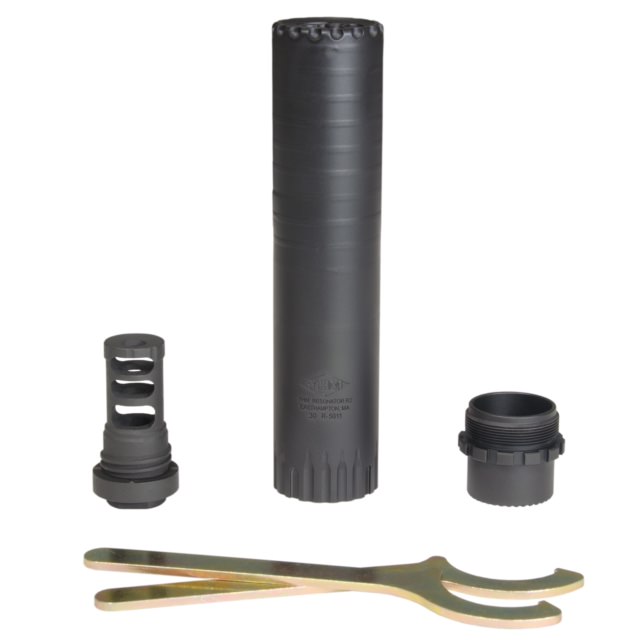

The Resonator R2 ships with the Phantom® Q.D. Adapter, 2 suppressor wrenches, and a YHM-4302 mount. It will fit all YHM-4302, YHM-3302 and YHM-3102/YHM-5M2 mounts.

Minimum Barrel Lengths:

7.62×51 / .308 Winchester: 10.5″ minimum barrel length
5.56 NATO, 6.8SPC, 7.62×39: 10.5″ minimum barrel length
.300 Win Mag / 300 RUM: 20″ minimum barrel length
300 Blackout: 8″ minimum barrel length
